Pressure Control Module (PCM 20-06 & 20-10)
Description
Designed to control Double pump of Hi-Low system. Unloads low pressure pump when system pressure rises above the pressure set on unloader valve. Relieves high pressure pump when system pressure reaches the value. Solenoid unloading facility available as an option
Hydraulic Symbol :
Connection Details
HP — High pressure pump connection
LP — Low pressure pump connection
P — Out let connection
HPG — Gauge connection on high pressure pump line
LPG — Gauge connection on low pressure pump line
Pt — Pilot pressure connection (Optional)
T1 — Tank connection of high pressure relief valve
T2 — Tank connection of low pressure unloader valve
F —- Filter port connection (T1 & T2)

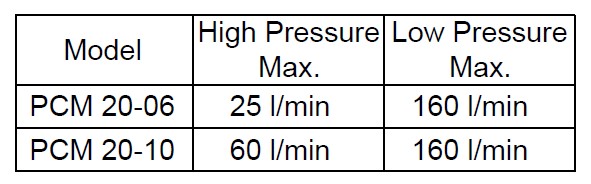

Technical Specification :

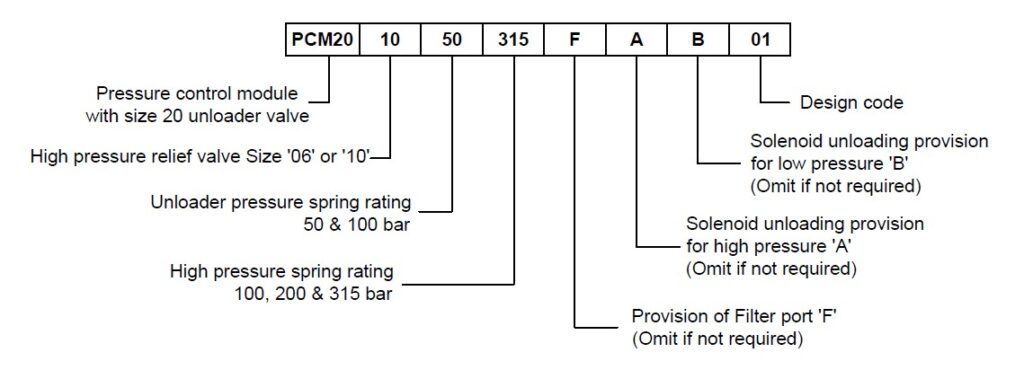

Ordering Code :
