Pressure Control Module (PCM 06-06)
Description
Designed to control Double pump of Hi-Low system. Unloads low pressure pump when system pressure rises above the pressure set on unloader valve. Relieves high pressure pump when system pressure reaches the value.

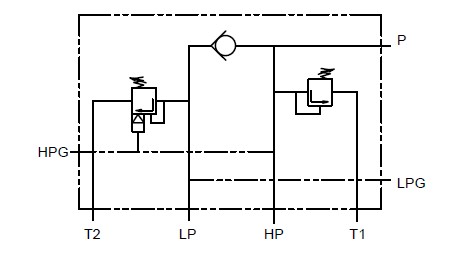

Hydraulic Symbol :
Connection Details
HP — High pressure pump connection
LP — Low pressure pump connection
P — Out let connection
HPG — Gauge connection on high pressure pump line
LPG — Gauge connection on low pressure pump line
T1 — Tank connection of high pressure relief valve
T2 — Tank connection of low pressure unloader valve

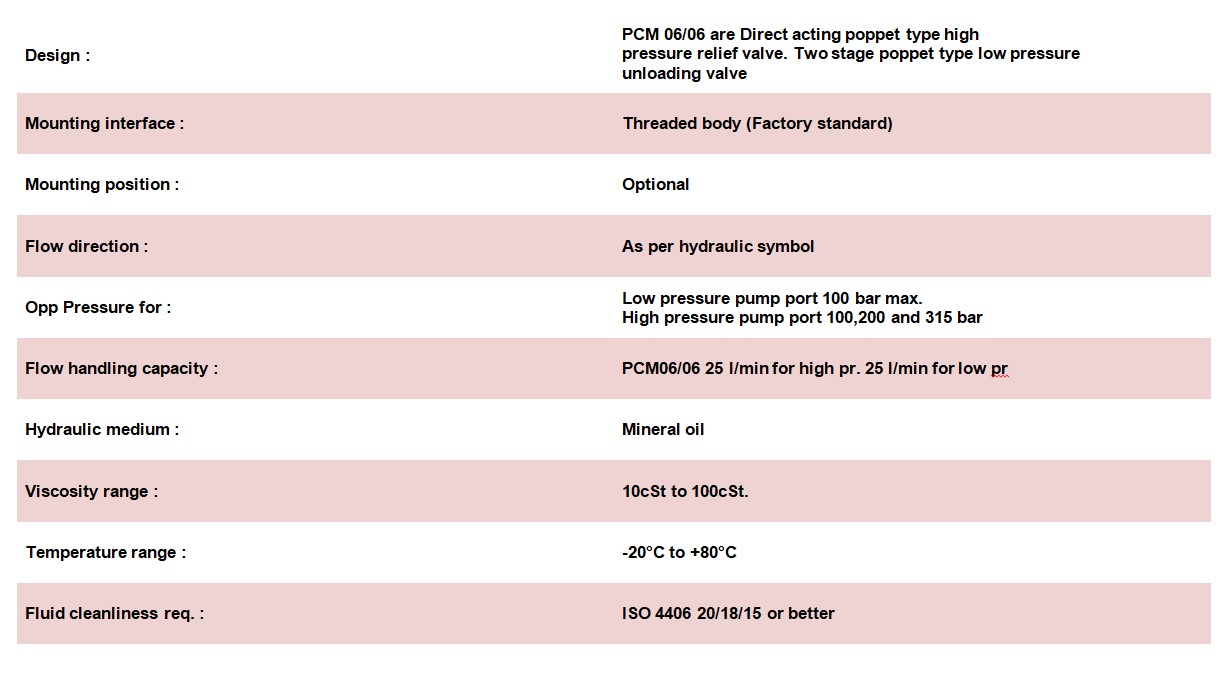

Technical Specification :

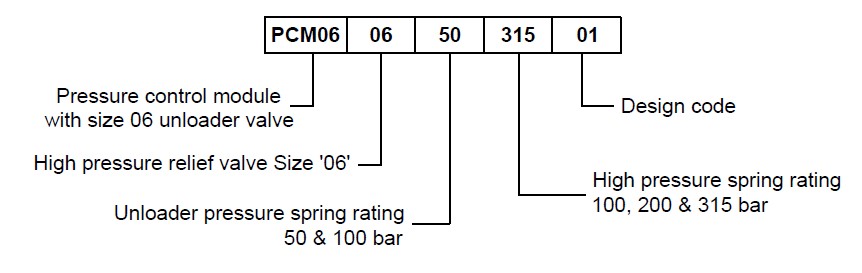

Ordering Code :
